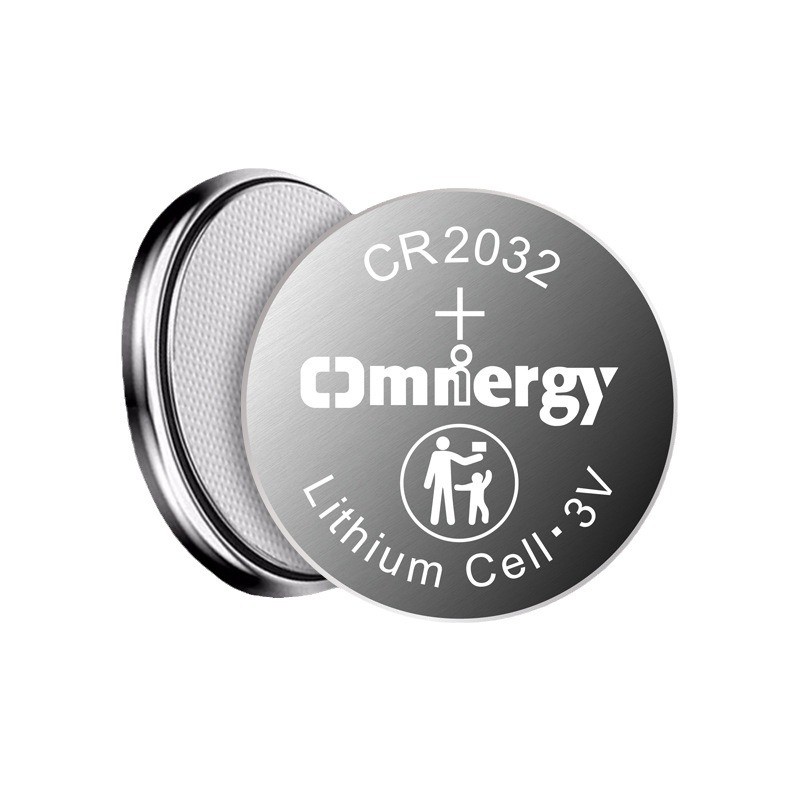

Pila de botón de litio CR2032D
Pila de botón de litio CR2032D
- Omnergy
- Porcelana
- 15 días
- 750 millones por año
Resistencia a baja temperatura
Excelente estabilidad de descarga
Alto voltaje, alta densidad de energía
Características superiores de almacenamiento
Especificación
| Modelo | Tensión nominal (V) | Capacidad nominal (mAh) | Corriente nominal (mA) | Corriente continua máxima (mA) | Corriente Máxima de Pluse (mA) | Dimensión máxima (mm) | Peso (gramos) |
| CR1216D | 3 | 25 | 0.1 | 2 | 5 | Φ2.5X2.5 | 0.7 |
| CR1220D | 3 | 38 | 0.1 | 2 | 5 | Φ12.5X2.0 | 0.8 |
| CR1225D | 3 | 50 | 0.1 | 2 | 5 | Φ2.5X2.5 | 0.9 |
| CR1616D | 3 | 50 | 0.1 | 3 | 8 | Φ16.0X1.6 | 1.2 |
| CR1620D | 3 | 70 | 0.1 | 3 | 8 | Φ16.0X2.0 | 1.3 |
| CR1632D | 3 | 120 | 0.2 | 3 | 8 | Φ16.0X3.2 | 2.0 |
| CR2016D | 3 | 80 | 0.1 | 5 | 15 | Φ20.0X1.6 | 2.0 |
| CR2020D | 3 | 130 | 0.2 | 5 | 15 | Φ20.0X2.0 | 2.3 |
| CR2025D | 3 | 150 | 0.2 | 5 | 15 | Φ20.0X2.5 | 2.6 |
| CR2032D | 3 | 220 | 0.2 | 5 | 15 | Φ20.0X3.2 | 3.2 |
| CR2320D | 3 | 130 | 0.2 | 6 | 20 | Φ23.0X2.0 | 3.0 |
| CR2325D | 3 | 190 | 0.2 | 6 | 20 | Φ23.0X2.5 | 3.3 |
| CR2330D | 3 | 260 | 0.2 | 6 | 20 | Φ23.0X3.0 | 4.0 |
| CR2335D | 3 | 300 | 0.2 | 6 | 20 | Φ23.0X3.0 | 4.3 |
| CR2354D | 3 | 520 | 0.4 | 6 | 20 | Φ23.0X5.4 | 6.9 |
| CR2430D | 3 | 270 | 0.2 | 7 | 25 | Φ24.5X3.0 | 4.5 |
| CR2450D | 3 | 600 | 0.4 | 7 | 25 | Φ24.5X5.0 | 6.8 |
| CR2477D | 3 | 1000 | 0.6 | 7 | 25 | Φ24.5X5.0 | 10.5 |
| CR3032D | 3 | 500 | 0.4 | 10 | 30 | Φ30.0X3.2 | 6.8 |
| CR3832D | 3 | 850 | 0.8 | 20 | 75 | Φ38.0X3.2 | 11.0 |
Característica de la pila de botón de litio CR2032D
Resistencia a baja temperatura
Excelente estabilidad de descarga
Alto voltaje, alta densidad de energía
Características superiores de almacenamiento
